Product description

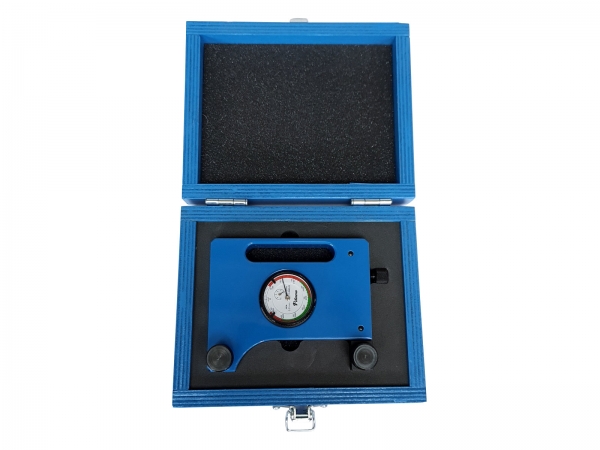

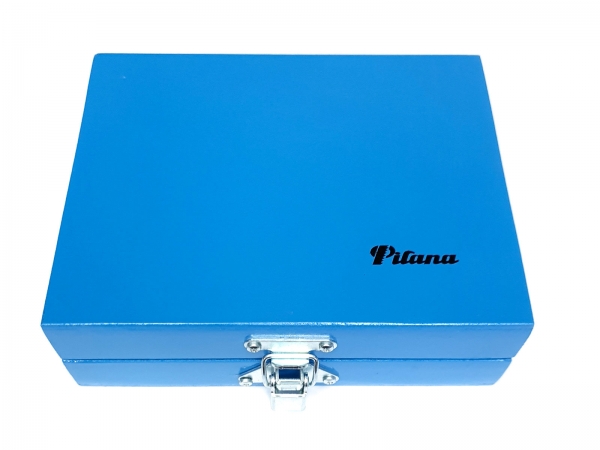

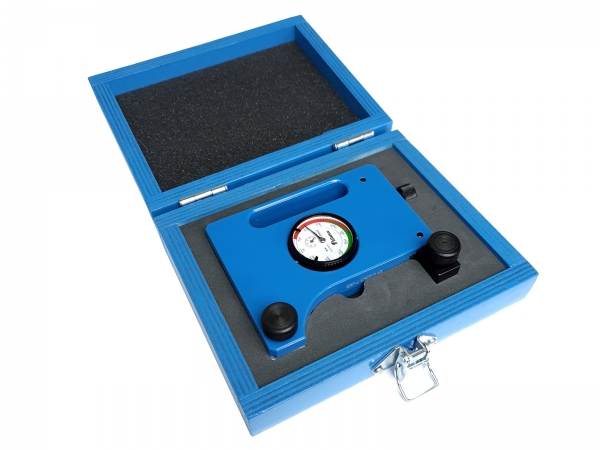

Portable strain gauge for measuring saw blade tension (for band saws), in blue lacquered wooden box.

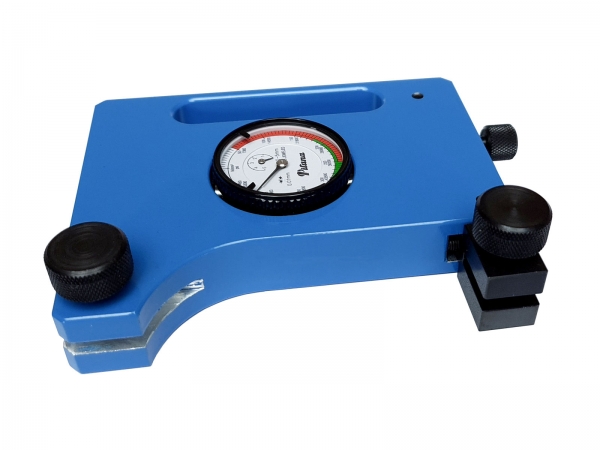

The tensiometer clamps directly onto the saw blade - can be used on saws of different manufacturers.
A correctly tensioned saw band is one of the most important factors affecting both the life of the saw band and the accuracy of the cut. To achieve optimum saw blade durability and increased cutting quality, it is important to set the recommended tension. By using a tension gauge you will significantly reduce the risk of saw blade breakage due to excessive tension or undercutting due to low tension.

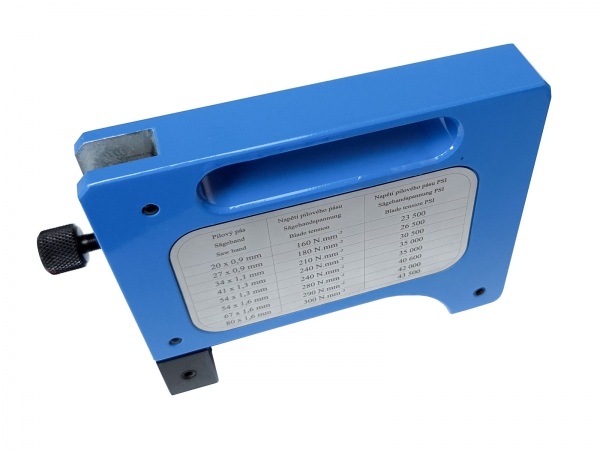

| Bandsaw blade width | Approximate recommended tension [Nmm2] |
| 13mm | 150 Nmm2 |
| 20mm | 160 Nmm2 |
| 27mm | 180 Nmm2 |
| 34mm | 210 Nmm2 |
| 41mm | 240 Nmm2 |
| 54mm | 280 Nmm2 |
| 67mm | 290 Nmm2 |
