M51 MASSIVE Profi
Klikněte pro zvětšení Klikněte pro zvětšení

M51 MASSIVE Profi

   Bimetal band saw blade with extra wear resistance  Application: cutting steels with tensile strength up to 1700 MPa high alloy steel and stainless steel titanium alloys and nickel hard machined materials Characteristics: tooth t...

Product code: M51531

Product description

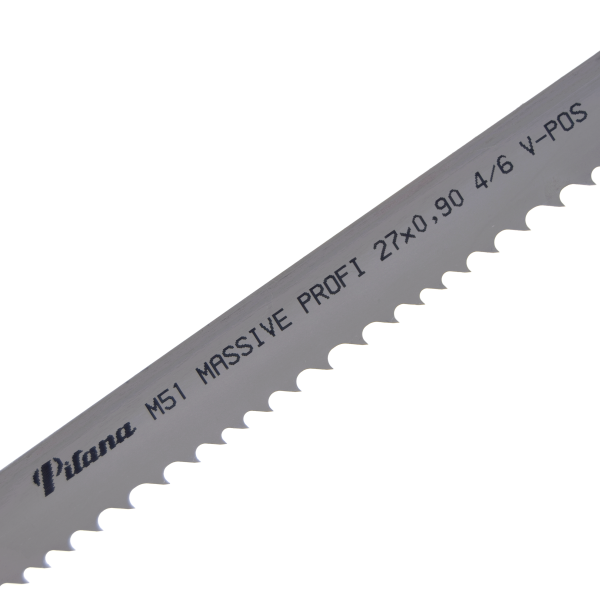

Bimetal band saw blade with extra wear resistance

Application:

  • cutting steels with tensile strength up to 1700 MPa
  • high alloy steel and stainless steel
  • titanium alloys and nickel
  • hard machined materials

Characteristics:

  • tooth tip made from high speed steel M51
  • exceptional abrasion resistance
  • above-average durability of the band and the highest cutting quality even in the most demanding applications
Dimmensions TPI Teeth Per Inch
mm inch 0,75/1,25 1,1/1,6 1,4/2 2/3 3/4 4/6
27 x 0,90 1-1/16 x 0,035       V-POS V-POS V-POS
34 x 1,10 1-3/8 x 0,042       V-POS V-POS V-POS
41 x 1,30 1-5/8 x 0,050     V-POS V-POS V-POS V-POS
54 x 1,30 2-1/8 x 0,050     V-POS V-POS V-POS V-POS
67 x 1,60 2 5/8 x 0,063 V-POS V-POS V-POS V-POS

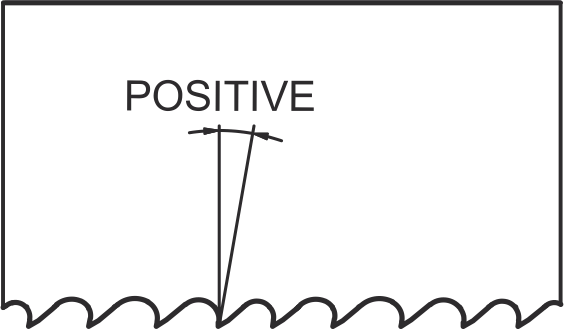

V-POS = variable tooth pitch and positive rake angle

Remember the proper running-band saw blades, which helps to increase lifetime expactancy. New band break-in for 20 minutes, the feed rate adjust to 50% and the cutting speed to 80% of normal values.

Komentáře

Tento produkt nebyl ještě hodnocen.

Komentář

Parametry

Band choice 27x0,90 3/4z; 27x0,90 4/6z; 34x1,10 2/3z; 34x1,10 3/4z; 34x1,10 4/6z; 41x1,30 1,4/2z; 41x1,30 2/3z; 41x1,30 3/4z; 41x1,30 4/6z; 54x1,30 1,4/2z; 54x1,30 2/3z; 54x1,30 3/4z; 54x1,30 4/6z; 67x1,60 0,75/1,25z; 67x1,60 1,1/1,6z; 67x1,60 1,4/2z; 67x1,60 2/3z;
Width 34; 41; 54; 67;
Thickness 1,10; 1,30; 1,60;
TPI 1,1/1,6; 1,4/2; 2/3; 3/4; 4/6;
