M42 PROFILE
Klikněte pro zvětšení Klikněte pro zvětšení

M42 PROFILE

Band saw blade specially designed for profile and structures cutting Application: suitable for cutting conventional steels and non-ferrous metals Excellent for cutting open and closed profiles, pipes and structures positive rake angle vib...

Product code: M42461

Product description

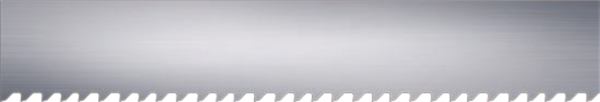

Band saw blade specially designed for profile and structures cutting

Application:

  • suitable for cutting conventional steels and non-ferrous metals

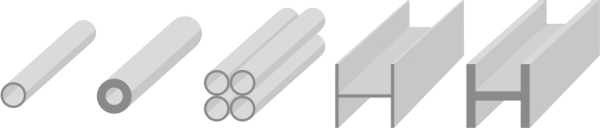

  • Excellent for cutting open and closed profiles, pipes and structures

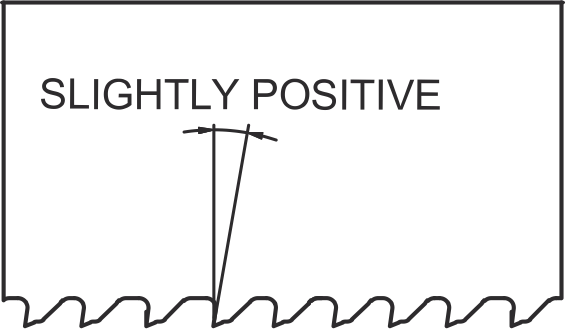

  • positive rake angle
  • vibrations

Characteristics:

  • M42 HSS tooth tip cutting edge, hardness 68 HRC
  • variable tooth pitch
  • progressive tooth setting
Dimmensions  TPI
mm inch 2/3 3/4 4/6 5/7 8/11
20 x 0,90 3/4 x 0,035       V-POS V-POS
27 x 0,90 1-1/16 x 0,035   V-POS V-POS V-POS V-POS
34 x 1,10 1-3/8 x 0,042 V-POS V-POS V-POS V-POS V-POS
41 x 1,30 1-5/8 x 0,050 V-POS V-POS V-POS V-POS V-POS
54 x 1,30 2-1/8 x 0,050 V-POS V-POS
54 x 1,60 2-1/8 x 0,063 V-POS V-POS

V-POS = variable tooth pitch and positive rake angle

Remember, proper running-in of band saw blades helps to increase their lifetime expectancy. After replacing the band with a new set feed rate to 50% and the cutting speed to 80% of normal values for 20 minutes.

Komentáře

Tento produkt nebyl ještě hodnocen.

Komentář

Parametry

Band choice 20x0,90 8/11z; 27x0,90 3/4z; 27x0,90 4/6z; 27x0,90 5/7z; 27x0,90 8/11z; 34x1,10 2/3z; 34x1,10 3/4z; 34x1,10 4/6z; 34x1,10 5/7z; 34x1,10 8/11z; 41x1,30 2/3z; 41x1,30 3/4z; 41x1,30 4/6z; 41x1,30 5/7z; 41x1,30 8/11z; 54x1,30 2/3z; 54x1,30 3/4z; 54x1,60 2/3z; 54x1,60 3/4z; 67x1,60 2/3z; 67x1,60 3/4z; 67x1,60 4/6z;
Width 27; 34; 41; 54; 67;
Thickness 1,10; 1,30; 1,60;
TPI 3/4; 4/6; 5/7; 8/11;
